ΒΆ Grafana
System Health Monitoring
External URL: grafana.risingflow.com
Internal URL: http://192.168.1.240:3000
Note: I removed CAdvisor which is created by google and monitors stats from each docker container due to it using over 10% of the CPU constantly. It would use less on a system with less containers. This stack comes with Alert Manager for configuration of system alerts. I have seen High I/O wait a couple times on the CPU and may setup an alert for this later.

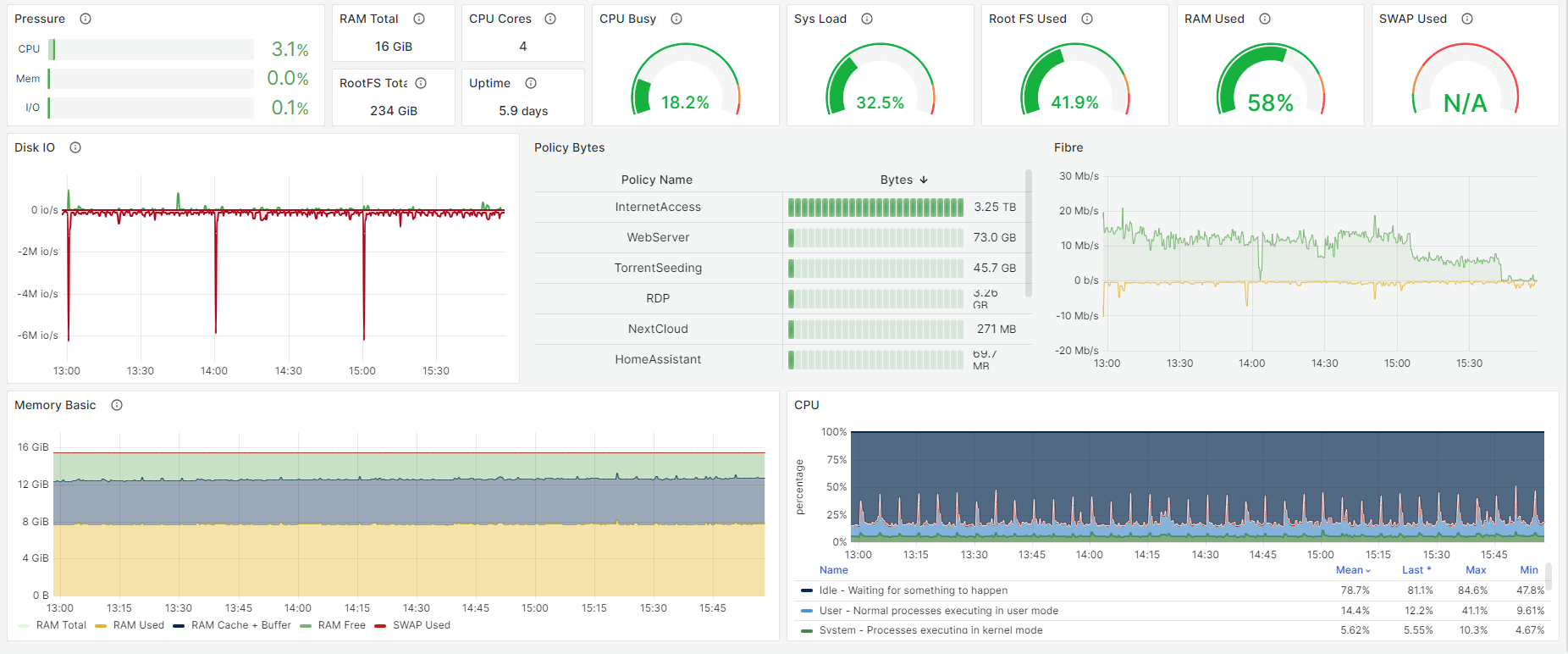

The Dashboard is custom built. I used a python script to take desired metrics from several existing public dashboards and merge them then removed metrics I don't need.
Currently keeping close eye on:
- Fortigate 40F Internet Usage per Policy
- CPU Usage on the Docker Host
- Disk IO on the Docker Host
- Memory usage on the Docker Host
Docker Compose:
version: '3.8'
x-logging:
&default-logging
driver: "json-file"
options:
max-size: "1m"
max-file: "1"
tag: "{{.Name}}"
services:
grafana:
image: grafana/grafana:${GRAFANA_VERSION:-10.3.1}
container_name: grafana
restart: always
user: root
environment:
- GF_AUTH_ANONYMOUS_ENABLED=true
- GF_AUTH_ANONYMOUS_ORG_ROLE=Admin
- GF_USERS_DEFAULT_THEME=light
- GF_LOG_MODE=console
- GF_LOG_LEVEL=critical
- GF_PANELS_ENABLE_ALPHA=true
- GF_INSTALL_PLUGINS=grafana-polystat-panel
volumes:
- ./configs/grafana/provisioning/dashboards.yml:/etc/grafana/provisioning/dashboards/provisioning-dashboards.yaml:ro
- ./configs/grafana/provisioning/datasources.yml:/etc/grafana/provisioning/datasources/provisioning-datasources.yaml:ro
- ./data/grafana/_data:/var/lib/grafana
depends_on:
- prometheus
ports:
- 3000:3000
networks:
- monitoring
logging: *default-logging
prometheus:
image: prom/prometheus:${PROMETHEUS_VERSION:-v2.42.0}
container_name: prometheus
restart: always
user: root
command:
- '--config.file=/etc/prometheus/prometheus.yml'
- '--log.level=error'
- '--storage.tsdb.path=/prometheus'
- '--storage.tsdb.retention.time=7d'
- '--web.console.libraries=/usr/share/prometheus/console_libraries'
- '--web.console.templates=/usr/share/prometheus/consoles'
- '--web.external-url=http://localhost:9090'
volumes:
- ./configs/prometheus/prometheus.yml:/etc/prometheus/prometheus.yml
- ./configs/prometheus/recording-rules.yml:/etc/prometheus/recording-rules.yml
- ./configs/prometheus/alerting-rules.yml:/etc/prometheus/alerting-rules.yml
- ./custom-monitoring-stack_prometheus-data:/prometheus
depends_on:
- alertmanager
ports:
- 9090:9090
networks:
- monitoring
logging: *default-logging
node-exporter:
image: prom/node-exporter:${NODE_EXPORTER_VERSION:-v1.5.0}
container_name: node-exporter
restart: always
user: root
volumes:
- /proc:/host/proc:ro
- /sys:/host/sys:ro
- /:/rootfs:ro
command:
- '--path.procfs=/host/proc'
- '--path.sysfs=/host/sys'
- '--collector.filesystem.ignored-mount-points'
- "^/(sys|proc|dev|host|etc|rootfs/var/lib/docker/containers|rootfs/var/lib/docker/overlay2|rootfs/run/docker/netns|rootfs/var/lib/docker/aufs)($$|/)"
networks:
- monitoring
logging: *default-logging
# cadvisor:
# image: gcr.io/cadvisor/cadvisor:${CADVISOR_VERSION:-v0.46.0}
# container_name: cadvisor
# restart: unless-stopped
# privileged: true
# cpus: "0.5"
# command:
# - "--housekeeping_interval=30s"
# - "-port=7070"
# - "-docker_only=false"
# - "-allow_dynamic_housekeeping=false"
# environment:
# - "CADVISOR_HEALTHCHECK_URL=http://localhost:7070/healthz"
# volumes:
# - /:/rootfs:ro
# - /var/run:/var/run:rw
# - /sys:/sys:ro
# - /var/lib/docker:/var/lib/docker:ro
# - /var/run/docker.sock:/var/run/docker.sock
# networks:
# - monitoring
# logging: *default-logging
alertmanager:
image: prom/alertmanager:${ALERTMANAGER_VERSION:-v0.25.0}
container_name: alertmanager
user: root
command:
- '--config.file=/etc/alertmanager/config.yml'
- '--log.level=error'
- '--storage.path=/alertmanager'
- '--web.external-url=http://localhost:9093'
volumes:
- ./configs/alertmanager/alertmanager-fallback-config.yml:/etc/alertmanager/config.yml
ports:
- 9093:9093
networks:
- monitoring
logging: *default-logging
redis:
image: redis:${REDIS_VERSION:-6}
container_name: redis
user: root
ports:
- 6379:6379
mem_limit: 1024m
networks:
- monitoring
logging: *default-logging
fortigate_exporter:
image: quay.io/bluecmd/fortigate_exporter
container_name: fortigate_exporter
volumes:
- ./fortigate/fortigate-key.yaml:/config/fortigate-key.yaml
ports:
- "9710:9710"
networks:
- monitoring
logging: *default-logging
command: ["-auth-file", "/config/fortigate-key.yaml", "-insecure"]
restart: always
networks:
monitoring:
driver: bridge
name: monitoring
attachable: true
Python Script to merge json files (Grafana Dashboard Metrics)
import os
import json
# Set the directory path where the JSON files are located
directory = r"C:\temp\json"
# Initialize an empty dictionary to store the merged data
merged_data = {}
# Iterate over each file in the directory
for filename in os.listdir(directory):
if filename.endswith(".json"):
file_path = os.path.join(directory, filename)
# Read the JSON file with UTF-8 encoding
with open(file_path, "r", encoding="utf-8") as file:
data = json.load(file)
# Merge the data into the merged_data dictionary
for key, value in data.items():
if key == "panels":
if key not in merged_data:
merged_data[key] = []
merged_data[key].extend(value)
elif key == "templating":
if key not in merged_data:
merged_data[key] = {"list": []}
merged_data[key]["list"].extend(value["list"])
else:
merged_data[key] = value
# Write the merged data to a new JSON file
output_file = r"C:\temp\json\merged_dashboard.json"
with open(output_file, "w", encoding="utf-8") as file:
json.dump(merged_data, file, indent=2, ensure_ascii=False)
print("JSON files merged successfully.")
Grafan DashBoard json
{
"annotations": {
"list": [
{
"$$hashKey": "object:1058",
"builtIn": 1,
"datasource": {
"type": "datasource",
"uid": "grafana"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"target": {
"limit": 100,
"matchAny": false,
"tags": [],
"type": "dashboard"
},
"type": "dashboard"
}
]
},
"description": "Docker Server",
"editable": true,
"fiscalYearStartMonth": 0,
"gnetId": 1860,
"graphTooltip": 1,
"id": 3,
"links": [
{
"icon": "external link",
"tags": [],
"targetBlank": true,
"title": "GitHub",
"type": "link",
"url": "https://github.com/rfmoz/grafana-dashboards"
},
{
"icon": "external link",
"tags": [],
"targetBlank": true,
"title": "Grafana",
"type": "link",
"url": "https://grafana.com/grafana/dashboards/1860"
}
],
"liveNow": false,
"panels": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "Resource pressure via PSI",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"decimals": 1,
"links": [],
"mappings": [],
"max": 1,
"min": 0,
"thresholds": {
"mode": "percentage",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "dark-yellow",
"value": 70
},
{
"color": "dark-red",
"value": 90
}
]
},
"unit": "percentunit",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 5,
"x": 0,
"y": 0
},
"id": 324,
"links": [],
"options": {
"displayMode": "basic",
"maxVizHeight": 300,
"minVizHeight": 10,
"minVizWidth": 0,
"namePlacement": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showUnfilled": true,
"sizing": "auto",
"text": {},
"valueMode": "color"
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "irate(node_pressure_cpu_waiting_seconds_total{instance=\"$node\",job=\"$job\"}[$__rate_interval])",
"format": "time_series",
"instant": true,
"intervalFactor": 1,
"legendFormat": "CPU",
"range": false,
"refId": "CPU some",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "irate(node_pressure_memory_waiting_seconds_total{instance=\"$node\",job=\"$job\"}[$__rate_interval])",
"format": "time_series",
"hide": false,
"instant": true,
"intervalFactor": 1,
"legendFormat": "Mem",
"range": false,
"refId": "Memory some",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "irate(node_pressure_io_waiting_seconds_total{instance=\"$node\",job=\"$job\"}[$__rate_interval])",
"format": "time_series",
"hide": false,
"instant": true,
"intervalFactor": 1,
"legendFormat": "I/O",
"range": false,
"refId": "I/O some",
"step": 240
}
],
"title": "Pressure",
"type": "bargauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "Total RAM",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"decimals": 0,
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "bytes",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 2,
"w": 2,
"x": 5,
"y": 0
},
"id": 75,
"links": [],
"maxDataPoints": 100,
"options": {
"colorMode": "none",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "node_memory_MemTotal_bytes{instance=\"$node\",job=\"$job\"}",
"instant": true,
"intervalFactor": 1,
"range": false,
"refId": "A",
"step": 240
}
],
"title": "RAM Total",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "Total number of CPU cores",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 2,
"w": 2,
"x": 7,
"y": 0
},
"id": 14,
"links": [],
"maxDataPoints": 100,
"options": {
"colorMode": "none",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu))",
"instant": true,
"legendFormat": "__auto",
"range": false,
"refId": "A"
}
],
"title": "CPU Cores",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"description": "Busy state of all CPU cores together",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"max": 100,
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "rgba(50, 172, 45, 0.97)",
"value": null
},
{
"color": "rgba(237, 129, 40, 0.89)",
"value": 85
},
{
"color": "rgba(245, 54, 54, 0.9)",
"value": 95
}
]
},
"unit": "percent",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 9,
"y": 0
},
"id": 52,
"links": [],
"options": {
"minVizHeight": 75,
"minVizWidth": 75,
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showThresholdLabels": false,
"showThresholdMarkers": true,
"sizing": "auto",
"text": {}
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "(sum by(instance) (irate(node_cpu_seconds_total{mode!=\"idle\"}[$__rate_interval])) / on(instance) group_left sum by (instance)((irate(node_cpu_seconds_total[$__rate_interval])))) * 100",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"range": true,
"refId": "A",
"step": 240
}
],
"title": "CPU Busy",
"type": "gauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "System load over all CPU cores together",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"decimals": 1,
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"max": 100,
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "rgba(50, 172, 45, 0.97)",
"value": null
},
{
"color": "rgba(237, 129, 40, 0.89)",
"value": 85
},
{
"color": "rgba(245, 54, 54, 0.9)",
"value": 95
}
]
},
"unit": "percent",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 12,
"y": 0
},
"id": 155,
"links": [],
"options": {
"minVizHeight": 75,
"minVizWidth": 75,
"orientation": "auto",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showThresholdLabels": false,
"showThresholdMarkers": true,
"sizing": "auto"
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "scalar(node_load1{instance=\"$node\",job=\"$job\"}) * 100 / count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu))",
"format": "time_series",
"hide": false,
"instant": true,
"intervalFactor": 1,
"range": false,
"refId": "A",
"step": 240
}
],
"title": "Sys Load",
"type": "gauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"description": "Used Root FS",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"max": 100,
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "rgba(50, 172, 45, 0.97)",
"value": null
},
{
"color": "rgba(237, 129, 40, 0.89)",
"value": 80
},
{
"color": "rgba(245, 54, 54, 0.9)",
"value": 90
}
]
},
"unit": "percent",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 15,
"y": 0
},
"id": 218,
"links": [],
"maxDataPoints": 100,
"options": {
"minVizHeight": 75,
"minVizWidth": 75,
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showThresholdLabels": false,
"showThresholdMarkers": true,
"sizing": "auto",
"text": {}
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "100 - ((node_filesystem_avail_bytes{mountpoint=\"/\",fstype!=\"rootfs\"} * 100) / node_filesystem_size_bytes{mountpoint=\"/\",fstype!=\"rootfs\"})",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 2,
"legendFormat": "/",
"range": true,
"refId": "A",
"step": 1800
}
],
"title": "Root FS Used",
"type": "gauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"description": "Non available RAM memory",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"decimals": 0,
"mappings": [],
"max": 100,
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "rgba(50, 172, 45, 0.97)",
"value": null
},
{
"color": "rgba(237, 129, 40, 0.89)",
"value": 80
},
{
"color": "rgba(245, 54, 54, 0.9)",
"value": 90
}
]
},
"unit": "percent",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 18,
"y": 0
},
"hideTimeOverride": false,
"id": 54,
"links": [],
"options": {
"minVizHeight": 75,
"minVizWidth": 75,
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showThresholdLabels": false,
"showThresholdMarkers": true,
"sizing": "auto",
"text": {}
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "((container_memory_MemTotal_bytes - container_memory_MemFree_bytes) / (container_memory_MemTotal_bytes )) * 100",
"format": "time_series",
"hide": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"range": true,
"refId": "A",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "100 - ((node_memory_MemAvailable_bytes * 100) / node_memory_MemTotal_bytes)",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"range": true,
"refId": "B",
"step": 240
}
],
"title": "RAM Used",
"type": "gauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"description": "Used Swap",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"max": 100,
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "rgba(50, 172, 45, 0.97)",
"value": null
},
{
"color": "rgba(237, 129, 40, 0.89)",
"value": 10
},
{
"color": "rgba(245, 54, 54, 0.9)",
"value": 25
}
]
},
"unit": "percent",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 21,
"y": 0
},
"id": 56,
"links": [],
"options": {
"minVizHeight": 75,
"minVizWidth": 75,
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showThresholdLabels": false,
"showThresholdMarkers": true,
"sizing": "auto",
"text": {}
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "((node_memory_SwapTotal_bytes - node_memory_SwapFree_bytes) / (node_memory_SwapTotal_bytes)) * 100",
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"range": true,
"refId": "A",
"step": 240
}
],
"title": "SWAP Used",
"type": "gauge"
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "Total RootFS",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"decimals": 0,
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "rgba(50, 172, 45, 0.97)",
"value": null
},
{
"color": "rgba(237, 129, 40, 0.89)",
"value": 70
},
{
"color": "rgba(245, 54, 54, 0.9)",
"value": 90
}
]
},
"unit": "bytes",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 2,
"w": 2,
"x": 5,
"y": 2
},
"id": 23,
"links": [],
"maxDataPoints": 100,
"options": {
"colorMode": "none",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "node_filesystem_size_bytes{instance=\"$node\",job=\"$job\",mountpoint=\"/\",fstype!=\"rootfs\"}",
"format": "time_series",
"hide": false,
"instant": true,
"intervalFactor": 1,
"range": false,
"refId": "A",
"step": 240
}
],
"title": "RootFS Total",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "System uptime",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"decimals": 1,
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "s",
"unitScale": true
},
"overrides": []
},
"gridPos": {
"h": 2,
"w": 2,
"x": 7,
"y": 2
},
"hideTimeOverride": true,
"id": 15,
"links": [],
"maxDataPoints": 100,
"options": {
"colorMode": "none",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"exemplar": false,
"expr": "node_time_seconds{instance=\"$node\",job=\"$job\"} - node_boot_time_seconds{instance=\"$node\",job=\"$job\"}",
"instant": true,
"intervalFactor": 1,
"range": false,
"refId": "A",
"step": 240
}
],
"title": "Uptime",
"type": "stat"
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"description": "The number (after merges) of I/O requests completed per second for the device",
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "smooth",
"lineWidth": 2,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "never",
"spanNulls": true,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"links": [],
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "iops",
"unitScale": true
},
"overrides": [
{
"matcher": {
"id": "byRegexp",
"options": "/.*sda_.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "green",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdb_.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "dark-yellow",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdc_.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#6ED0E0",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdd_.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#EF843C",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sde_.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#E24D42",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sda1.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#584477",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sda2_.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#BA43A9",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sda3_.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#F4D598",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdb1.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#0A50A1",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdb2.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#BF1B00",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdb3.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#E0752D",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdc1.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#962D82",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdc2.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#614D93",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdc3.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#9AC48A",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdd1.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#65C5DB",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdd2.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#F9934E",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdd3.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#EA6460",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sde1.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#E0F9D7",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sdd2.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#FCEACA",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*sde3.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#F9E2D2",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byRegexp",
"options": "/.*writes.*/"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "dark-red",
"mode": "fixed"
}
}
]
}
]
},
"gridPos": {
"h": 8,
"w": 8,
"x": 0,
"y": 4
},
"id": 60,
"links": [],
"options": {
"legend": {
"calcs": [
"mean",
"lastNotNull",
"max",
"min"
],
"displayMode": "list",
"placement": "right",
"showLegend": false
},
"tooltip": {
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "8.2.2",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "irate(node_disk_read_bytes_total[$__rate_interval])",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}} - reads",
"range": true,
"refId": "A",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "- irate(node_disk_written_bytes_total[$__rate_interval])",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}} - writes",
"range": true,
"refId": "B",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"editorMode": "code",
"exemplar": true,
"expr": "irate(node_disk_io_time_seconds_total[$__rate_interval])",
"hide": true,
"interval": "",
"legendFormat": "{{device}} - io time",
"range": true,
"refId": "C"
}
],
"title": "Disk IO",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "center",
"cellOptions": {
"type": "auto"
},
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
}
]
},
"unit": "decbytes",
"unitScale": true
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Bytes"
},
"properties": [
{
"id": "custom.cellOptions",
"value": {
"mode": "lcd",
"type": "gauge"
}
}
]
}
]
},
"gridPos": {
"h": 8,
"w": 8,
"x": 8,
"y": 4
},
"id": 215,
"options": {
"cellHeight": "sm",
"footer": {
"countRows": false,
"fields": "",
"reducer": [
"sum"
],
"show": false
},
"showHeader": true,
"sortBy": [
{
"desc": true,
"displayName": "Bytes"
}
]
},
"pluginVersion": "10.3.1",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"expr": "sum(fortigate_policy_bytes_total{instance=\"[[firewall]]\"}) by (name)",
"format": "table",
"instant": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"refId": "A"
}
],
"title": "Policy Bytes",
"transformations": [
{
"id": "organize",
"options": {
"excludeByName": {
"Time": true
},
"indexByName": {},
"renameByName": {
"Value": "Bytes",
"name": "Policy Name"
}
}
}
],
"transparent": true,
"type": "table"
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"fieldConfig": {
"defaults": {
"unitScale": true
},
"overrides": []
},
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 16,
"y": 4
},
"hiddenSeries": false,
"id": 217,
"legend": {
"avg": false,
"current": false,
"max": false,
"min": false,
"show": false,
"total": false,
"values": false
},
"lines": true,
"linewidth": 1,
"nullPointMode": "null",
"options": {
"alertThreshold": true
},
"percentage": false,
"pluginVersion": "10.3.1",
"pointradius": 2,
"points": false,
"renderer": "flot",
"repeat": "interface",
"repeatDirection": "v",
"seriesOverrides": [
{
"$$hashKey": "object:1117",
"alias": "Send",
"transform": "negative-Y"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"expr": "irate(fortigate_interface_receive_bytes_total{instance=\"[[firewall]]\",name=\"[[interface]]\"}[1m]) * 8",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "Receive",
"refId": "A"
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"expr": "irate(fortigate_interface_transmit_bytes_total{instance=\"[[firewall]]\",name=\"[[interface]]\"}[1m]) * 8",
"interval": "",
"legendFormat": "Send",
"refId": "B"
}
],
"thresholds": [],
"timeRegions": [],
"title": "[[interface]]",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"transparent": true,
"type": "graph",
"xaxis": {
"mode": "time",
"show": true,
"values": []
},
"yaxes": [
{
"$$hashKey": "object:1130",
"format": "bps",
"logBase": 1,
"show": true
},
{
"$$hashKey": "object:1131",
"format": "bps",
"logBase": 1,
"show": true
}
],
"yaxis": {
"align": false
}
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "Basic memory usage",
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 40,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "never",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "normal"
},
"thresholdsStyle": {
"mode": "off"
}
},
"links": [],
"mappings": [],
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "bytes",
"unitScale": true
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Apps"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#629E51",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Buffers"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#614D93",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Cache"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#6D1F62",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Cached"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#511749",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Committed"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#508642",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Free"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#0A437C",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Hardware Corrupted - Amount of RAM that the kernel identified as corrupted / not working"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#CFFAFF",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Inactive"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#584477",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "PageTables"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#0A50A1",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Page_Tables"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#0A50A1",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "RAM_Free"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#E0F9D7",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "SWAP Used"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#BF1B00",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Slab"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#806EB7",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Slab_Cache"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#E0752D",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Swap"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#BF1B00",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Swap Used"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#BF1B00",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Swap_Cache"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#C15C17",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Swap_Free"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#2F575E",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Unused"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#EAB839",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "RAM Total"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#E0F9D7",
"mode": "fixed"
}
},
{
"id": "custom.fillOpacity",
"value": 0
},
{
"id": "custom.stacking",
"value": {
"group": false,
"mode": "normal"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "RAM Cache + Buffer"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#052B51",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "RAM Free"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#7EB26D",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Available"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#DEDAF7",
"mode": "fixed"
}
},
{
"id": "custom.fillOpacity",
"value": 0
},
{
"id": "custom.stacking",
"value": {
"group": false,
"mode": "normal"
}
}
]
}
]
},
"gridPos": {
"h": 8,
"w": 12,
"x": 0,
"y": 12
},
"id": 78,
"links": [],
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true,
"width": 350
},
"tooltip": {
"mode": "multi",
"sort": "none"
}
},
"pluginVersion": "9.2.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"expr": "node_memory_MemTotal_bytes{instance=\"$node\",job=\"$job\"}",
"format": "time_series",
"hide": false,
"intervalFactor": 1,
"legendFormat": "RAM Total",
"refId": "A",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"expr": "node_memory_MemTotal_bytes{instance=\"$node\",job=\"$job\"} - node_memory_MemFree_bytes{instance=\"$node\",job=\"$job\"} - (node_memory_Cached_bytes{instance=\"$node\",job=\"$job\"} + node_memory_Buffers_bytes{instance=\"$node\",job=\"$job\"} + node_memory_SReclaimable_bytes{instance=\"$node\",job=\"$job\"})",
"format": "time_series",
"hide": false,
"intervalFactor": 1,
"legendFormat": "RAM Used",
"refId": "B",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"expr": "node_memory_Cached_bytes{instance=\"$node\",job=\"$job\"} + node_memory_Buffers_bytes{instance=\"$node\",job=\"$job\"} + node_memory_SReclaimable_bytes{instance=\"$node\",job=\"$job\"}",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "RAM Cache + Buffer",
"refId": "C",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"expr": "node_memory_MemFree_bytes{instance=\"$node\",job=\"$job\"}",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "RAM Free",
"refId": "D",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"expr": "(node_memory_SwapTotal_bytes{instance=\"$node\",job=\"$job\"} - node_memory_SwapFree_bytes{instance=\"$node\",job=\"$job\"})",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "SWAP Used",
"refId": "E",
"step": 240
}
],
"title": "Memory Basic",
"type": "timeseries"
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"description": "",
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "percentage",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 70,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "smooth",
"lineWidth": 2,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "never",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "percent"
},
"thresholdsStyle": {
"mode": "off"
}
},
"links": [],
"mappings": [],
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "percentunit",
"unitScale": true
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Idle - Waiting for something to happen"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#052B51",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Iowait - Waiting for I/O to complete"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#EAB839",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Irq - Servicing interrupts"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#BF1B00",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Nice - Niced processes executing in user mode"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#C15C17",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Softirq - Servicing softirqs"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#E24D42",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "Steal - Time spent in other operating systems when running in a virtualized environment"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#FCE2DE",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "System - Processes executing in kernel mode"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#508642",
"mode": "fixed"
}
}
]
},
{
"matcher": {
"id": "byName",
"options": "User - Normal processes executing in user mode"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "#5195CE",
"mode": "fixed"
}
}
]
}
]
},
"gridPos": {
"h": 8,
"w": 12,
"x": 12,
"y": 12
},
"id": 3,
"links": [],
"options": {
"legend": {
"calcs": [
"mean",
"lastNotNull",
"max",
"min"
],
"displayMode": "table",
"placement": "bottom",
"showLegend": true,
"sortBy": "Mean",
"sortDesc": true,
"width": 250
},
"tooltip": {
"mode": "multi",
"sort": "desc"
}
},
"pluginVersion": "9.2.0",
"targets": [
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum(irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"system\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "System - Processes executing in kernel mode",
"range": true,
"refId": "A",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum(irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"user\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "User - Normal processes executing in user mode",
"range": true,
"refId": "B",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum(irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"nice\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Nice - Niced processes executing in user mode",
"range": true,
"refId": "C",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum by(instance) (irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"iowait\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Iowait - Waiting for I/O to complete",
"range": true,
"refId": "E",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum(irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"irq\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Irq - Servicing interrupts",
"range": true,
"refId": "F",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum(irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"softirq\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Softirq - Servicing softirqs",
"range": true,
"refId": "G",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum(irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"steal\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Steal - Time spent in other operating systems when running in a virtualized environment",
"range": true,
"refId": "H",
"step": 240
},
{
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"editorMode": "code",
"expr": "sum(irate(node_cpu_seconds_total{instance=\"$node\",job=\"$job\", mode=\"idle\"}[$__rate_interval])) / scalar(count(count(node_cpu_seconds_total{instance=\"$node\",job=\"$job\"}) by (cpu)))",
"format": "time_series",
"hide": false,
"intervalFactor": 1,
"legendFormat": "Idle - Waiting for something to happen",
"range": true,
"refId": "J",
"step": 240
}
],
"title": "CPU",
"type": "timeseries"
}
],
"refresh": "30s",
"revision": 1,
"schemaVersion": 39,
"tags": [],
"templating": {
"list": [
{
"allValue": ".*",
"current": {
"selected": false,
"text": "All",
"value": "$__all"
},
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"definition": "label_values(cadvisor_version_info, instance)",
"hide": 0,
"includeAll": true,
"label": "Host",
"multi": false,
"name": "host",
"options": [],
"query": {
"query": "label_values(cadvisor_version_info, instance)",
"refId": "StandardVariableQuery"
},
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 5,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allValue": ".+",
"current": {
"selected": true,
"text": [
"All"
],
"value": [
"$__all"
]
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "",
"hide": 0,
"includeAll": true,
"label": "Container Group",
"multi": true,
"name": "containergroup",
"options": [],
"query": {
"query": "label_values(container_group)",
"refId": "Prometheus-containergroup-Variable-Query"
},
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"type": "query"
},
{
"current": {
"selected": true,
"text": [
"node-exporter"
],
"value": [
"node-exporter"
]
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "label_values(node_boot_time_seconds, instance)",
"hide": 0,
"includeAll": false,
"label": "Node",
"multi": true,
"name": "server",
"options": [],
"query": {
"query": "label_values(node_boot_time_seconds, instance)",
"refId": "StandardVariableQuery"
},
"refresh": 1,
"regex": "/([^:]+):.*/",
"skipUrlSync": false,
"sort": 0,
"type": "query"
},
{
"auto": true,
"auto_count": 50,
"auto_min": "50s",
"current": {
"selected": false,
"text": "30s",
"value": "30s"
},
"hide": 0,
"label": "interval",
"name": "interval",
"options": [
{
"selected": false,
"text": "auto",
"value": "$__auto_interval_interval"
},
{
"selected": true,
"text": "30s",
"value": "30s"
},
{
"selected": false,
"text": "1m",
"value": "1m"
},
{
"selected": false,
"text": "2m",
"value": "2m"
},
{
"selected": false,
"text": "3m",
"value": "3m"
},
{
"selected": false,
"text": "5m",
"value": "5m"
},
{
"selected": false,
"text": "7m",
"value": "7m"
},
{
"selected": false,
"text": "10m",
"value": "10m"
},
{
"selected": false,
"text": "30m",
"value": "30m"
},
{
"selected": false,
"text": "1h",
"value": "1h"
},
{
"selected": false,
"text": "6h",
"value": "6h"
},
{
"selected": false,
"text": "12h",
"value": "12h"
},
{
"selected": false,
"text": "1d",
"value": "1d"
},
{
"selected": false,
"text": "7d",
"value": "7d"
},
{
"selected": false,
"text": "14d",
"value": "14d"
},
{
"selected": false,
"text": "30d",
"value": "30d"
}
],
"query": "30s,1m,2m,3m,5m,7m,10m,30m,1h,6h,12h,1d,7d,14d,30d",
"queryValue": "",
"refresh": 2,
"skipUrlSync": false,
"type": "interval"
},
{
"allValue": ".*",
"current": {
"selected": true,
"text": [
"All"
],
"value": [
"$__all"
]
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "label_values(container_cpu_user_seconds_total{job=~\"$job\", instance=~\"$instance\"},name)",
"description": "List of all containers that are monitored",
"hide": 0,
"includeAll": true,
"label": "Container(s)",
"multi": true,
"name": "container",
"options": [],
"query": {
"query": "label_values(container_cpu_user_seconds_total{job=~\"$job\", instance=~\"$instance\"},name)",
"refId": "PrometheusVariableQueryEditor-VariableQuery"
},
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"type": "query"
},
{
"allValue": ".*",
"current": {
"selected": true,
"text": [
"All"
],
"value": [
"$__all"
]
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "label_values(container_cpu_user_seconds_total{job=\"$job\",from=\"docker\"}, name)",
"hide": 0,
"includeAll": true,
"label": "name",
"multi": true,
"name": "name",
"options": [],
"query": {
"query": "label_values(container_cpu_user_seconds_total{job=\"$job\",from=\"docker\"}, name)",
"refId": "Prometheus-name-Variable-Query"
},
"refresh": 2,
"regex": "",
"skipUrlSync": false,
"sort": 6,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allValue": ".*",
"current": {
"selected": true,
"text": [
"All"
],
"value": [
"$__all"
]
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "label_values(container_cpu_user_seconds_total{name=~\"$name\"}, instance)",
"hide": 0,
"includeAll": true,
"label": "instance",
"multi": true,
"name": "instance",
"options": [],
"query": {
"query": "label_values(container_cpu_user_seconds_total{name=~\"$name\"}, instance)",
"refId": "Prometheus-instance-Variable-Query"
},
"refresh": 2,
"regex": "",
"skipUrlSync": false,
"sort": 5,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allValue": "",
"current": {
"selected": true,
"text": [
"All"
],
"value": [
"$__all"
]
},
"hide": 0,
"includeAll": true,
"label": "sum",
"multi": true,
"name": "sum_without",
"options": [
{
"selected": true,
"text": "All",
"value": "$__all"
},
{
"selected": false,
"text": "unsum",
"value": "unsum"
},
{
"selected": false,
"text": "instance",
"value": "instance"
},
{
"selected": false,
"text": "image",
"value": "image"
},
{
"selected": false,
"text": "container_label_restartcount",
"value": "container_label_restartcount"
},
{
"selected": false,
"text": "device",
"value": "device"
}
],
"query": "unsum,instance,image,container_label_restartcount,device",
"queryValue": "",
"skipUrlSync": false,
"type": "custom"
},
{
"current": {
"selected": false,
"text": "global",
"value": "global"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "fortigate_certificate_info{instance=~\"[[firewall]]\"}",
"hide": 0,
"includeAll": false,
"multi": false,
"name": "scope",
"options": [],
"query": "fortigate_certificate_info{instance=~\"[[firewall]]\"}",
"refresh": 1,
"regex": "/.*scope=\"([^\"]*).*/",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "root",
"value": "root"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "fortigate_certificate_info{instance=~\"[[firewall]]\"}",
"hide": 0,
"includeAll": false,
"multi": false,
"name": "vdom",
"options": [],
"query": "fortigate_certificate_info{instance=~\"[[firewall]]\"}",
"refresh": 1,
"regex": "/.*vdom=\"([^\"]*).*/",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "All",
"value": "$__all"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "fortigate_ipsec_tunnel_up{instance=~\"[[firewall]]\"}",
"hide": 0,
"includeAll": true,
"multi": false,
"name": "phase1",
"options": [],
"query": "fortigate_ipsec_tunnel_up{instance=~\"[[firewall]]\"}",
"refresh": 1,
"regex": "/.*parent=\"([^\"]*).*/",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "All",
"value": "$__all"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "fortigate_ipsec_tunnel_up{instance=~\"[[firewall]]\"}",
"hide": 0,
"includeAll": true,
"multi": false,
"name": "phase2",
"options": [],
"query": "fortigate_ipsec_tunnel_up{instance=~\"[[firewall]]\"}",
"refresh": 1,
"regex": "/.*name=\"([^\"]*).*/",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "All",
"value": "$__all"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "fortigate_link_status_change_time_seconds{instance=~\"[[firewall]]\"}",
"hide": 0,
"includeAll": true,
"multi": false,
"name": "monitor",
"options": [],
"query": "fortigate_link_status_change_time_seconds{instance=~\"[[firewall]]\"}",
"refresh": 1,
"regex": "/.*monitor=\"([^\"]*).*/",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "All",
"value": "$__all"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "fortigate_virtual_wan_status{instance=~\"[[firewall]]\"}",
"hide": 0,
"includeAll": true,
"multi": false,
"name": "sdwan",
"options": [],
"query": "fortigate_virtual_wan_status{instance=~\"[[firewall]]\"}",
"refresh": 1,
"regex": "/.*interface=\"([^\"]*).*/",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "Fortinet_SSL",
"value": "Fortinet_SSL"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "fortigate_certificate_info{instance=~\"[[firewall]]\"}",
"hide": 0,
"includeAll": false,
"multi": false,
"name": "certificate",
"options": [],
"query": "fortigate_certificate_info{instance=~\"[[firewall]]\"}",
"refresh": 1,
"regex": "/.*name=\"([^\"]*).*/",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "fortigate.risingflow.com",
"value": "fortigate.risingflow.com"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "label_values(fortigate_version_info, instance)",
"hide": 0,
"includeAll": false,
"label": "Firewall",
"multi": false,
"name": "firewall",
"options": [],
"query": "label_values(fortigate_version_info, instance)",
"refresh": 2,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "Fibre",
"value": "Fibre"
},
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"definition": "label_values(fortigate_interface_link_up{instance=\"[[firewall]]\"}, name)",
"hide": 0,
"includeAll": false,
"label": "Interface",
"multi": false,
"name": "interface",
"options": [],
"query": "label_values(fortigate_interface_link_up{instance=\"[[firewall]]\"}, name)",
"refresh": 2,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"datasource": {
"type": "prometheus",
"uid": "PBFA97CFB590B2093"
},
"filters": [],
"hide": 0,
"name": "Filters",
"skipUrlSync": false,
"type": "adhoc"
},
{
"current": {
"selected": false,
"text": "Prometheus",
"value": "PBFA97CFB590B2093"
},
"hide": 0,
"includeAll": false,
"label": "Datasource",
"multi": false,
"name": "datasource",
"options": [],
"query": "prometheus",
"queryValue": "",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"type": "datasource"
},
{
"current": {
"selected": false,
"text": "node-exporter",
"value": "node-exporter"
},
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"definition": "",
"hide": 0,
"includeAll": false,
"label": "Job",
"multi": false,
"name": "job",
"options": [],
"query": {
"query": "label_values(node_uname_info, job)",
"refId": "Prometheus-job-Variable-Query"
},
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 1,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "node-exporter:9100",
"value": "node-exporter:9100"
},
"datasource": {
"type": "prometheus",
"uid": "${datasource}"
},
"definition": "label_values(node_uname_info{job=\"$job\"}, instance)",
"hide": 0,
"includeAll": false,
"label": "Host",
"multi": false,
"name": "node",
"options": [],
"query": {
"query": "label_values(node_uname_info{job=\"$job\"}, instance)",
"refId": "Prometheus-node-Variable-Query"
},
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 1,
"tagValuesQuery": "",
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"current": {
"selected": false,
"text": "[a-z]+|nvme[0-9]+n[0-9]+|mmcblk[0-9]+",
"value": "[a-z]+|nvme[0-9]+n[0-9]+|mmcblk[0-9]+"
},
"hide": 2,
"includeAll": false,
"multi": false,
"name": "diskdevices",
"options": [
{
"selected": true,
"text": "[a-z]+|nvme[0-9]+n[0-9]+|mmcblk[0-9]+",
"value": "[a-z]+|nvme[0-9]+n[0-9]+|mmcblk[0-9]+"
}
],
"query": "[a-z]+|nvme[0-9]+n[0-9]+|mmcblk[0-9]+",
"skipUrlSync": false,
"type": "custom"
}
]
},
"time": {
"from": "now-3h",
"to": "now"
},
"timepicker": {
"refresh_intervals": [
"5s",
"10s",
"30s",
"1m",
"5m",
"15m",
"30m",
"1h",
"2h",
"1d"
],
"time_options": [
"5m",
"15m",
"1h",
"6h",
"12h",
"24h",
"2d",
"7d",
"30d"
]
},
"timezone": "browser",
"title": "Docker Host",
"uid": "ae190479-aecf-47ff-92b1-d8a4046d4f1f",
"version": 5,
"weekStart": ""
}
